Which Is The Best Pex Radiant Heating

The Heart of your Heating SystemRadiant Heat manifolds play a large part in heating systems. It allows for even distribution of supply water from the heat source to distribution lines that circulate hot water through the entire system. They can be used in a variety of applications ranging from radiant, hydronic, or snow-melt applications. The systems are made of adapters, end caps, and fittings that can be customized in a manifold depending on the application. A well-made manifold should distribute water efficiently and economically when the PEX tubing is sized properly. PEX manifolds reduce the need for soldering copper pipes, which prevents flames and chemicals getting into water lines causing problems. A Radiant PEX Manifold set can cover a large area depending on the branch. A 2-branch Radiant PEX Manifold Set can cover a maximum of 800 square feet to an 8-branch that can cover 1800-2200 square foot of floor.Our Radiant Floor Heating Manifold Set comes complete with:(1)- Manifold balance section Body with flow meters(1)- Manifold Isolation section Body with valves(2)- Mounting brackets (2)- Manifold Isolation ball valve with 1″ (inch) NPT Pipe Connection(2)- Stem thermometer on each Manifold Isolation ball valve(2)- Manifold end capsAlso includes 1/2″ Compression connectors-(* quantity varies by branch see below) CM1634-2 4pcsCM1634-3 6pcsCM1634-4 8pcsCM1634-5 10pcsCM1634-6 12pcsCM1634-8 16pcsCM1634-12 24pcsDon’t forget to “Add to Cart” now to start enjoying the durability of our Radiant Heat Manifolds!

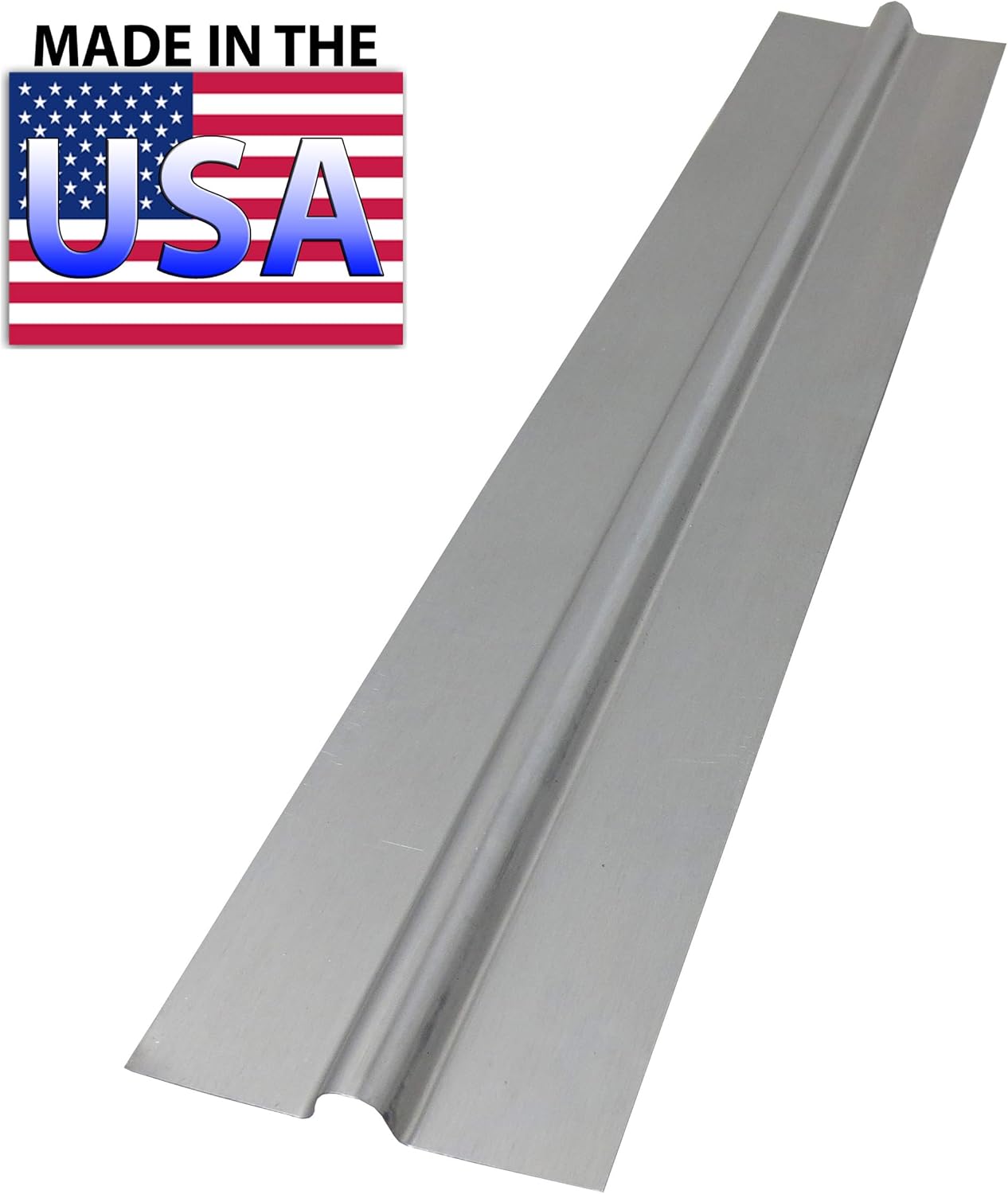

This is a box of Genuine PEX GUY 2ft long Aluminum Heat Transfer Plates for 1/2″ PEX tubing.

Details:
– Manufactured from stamped aluminum.
– Nominal thickness of these plates is 0.016″, with the length of 24″ and the width of 4.5″.
– Compatible with all types and brands of 1/2″ PEX tubing (5/8″ OD).
– Can be used for subfloor or sandwich type radiant heating installations to improve heat transfer properties of the system and lower the water supply temperature, thus reducing the heating bills.
– Recommended spacing for parallel tubing runs is 8″ OC.

*** CALCULATIONS (assuming 8 inch spacing): Number of plates = sq area x 1.30 / length of plates ***
– Example: 1000 sq ft area multiply by 1.30 = 1300ft of plates (650 plates of the 2ft version or 325 plates of the 4 ft version). Note: Do not overlap the ends of the plates, make sure you have at least 2-3 inches spacing from end to end.

Omega Type – 1/2″ PEX snaps on to the plates. Box of (100), 2ft long, Heat Transfer Plates for 1/2″ PEX tubing. Manufactured from stamped aluminum. Nominal thickness of these plates is 0.016″, with the length of 24″ and the width of 4.5″. Compatible with all types and brands of 1/2″ PEX tubing (5/8″ OD). Can be used for subfloor or sandwich type radiant heating installations to improve heat transfer properties of the system and lower the water supply temperature, thus reducing the heating bills. Recommended spacing for parallel tubing runs is 8″ OC.

CUT. PUSH. DONE. Installation kit that includes most of the necessary components for installing a radiant heating system. The SharkBite Connection System makes any plumbing project fast and easy thanks to unique push-to-connect technology. When you insert a pipe into a SharkBite quick-connect fitting, the fitting’s stainless-steel teeth bite down and grip the pipe, while its special O-ring compresses to create a watertight seal. No soldering, no clamps, no glue. SharkBite products work with your existing plumbing, are easy to disassemble for changing and reusing fittings, and can be rotated for installation in tight spaces. Whether you need to repair a broken pipe or plumb a whole house, SharkBite provides a push-to-connect solution and leak-free results.

Conclusion

By our suggestions above, we hope that you can found pex radiant heating for you.Please don’t forget to share your experience by comment in this post. Thank you!
