Nowadays, there are so many products of induction heating power supply module with coil in the market and you are wondering to choose a best one. You have searched for induction heating power supply module with coil in many merchants, compared about products prices & reviews before deciding to buy them.

You are in RIGHT PLACE.

Here are some of best sellings induction heating power supply module with coil which we would like to recommend with high customer review ratings to guide you on quality & popularity of each items.

Best results for induction heating power supply module with coil

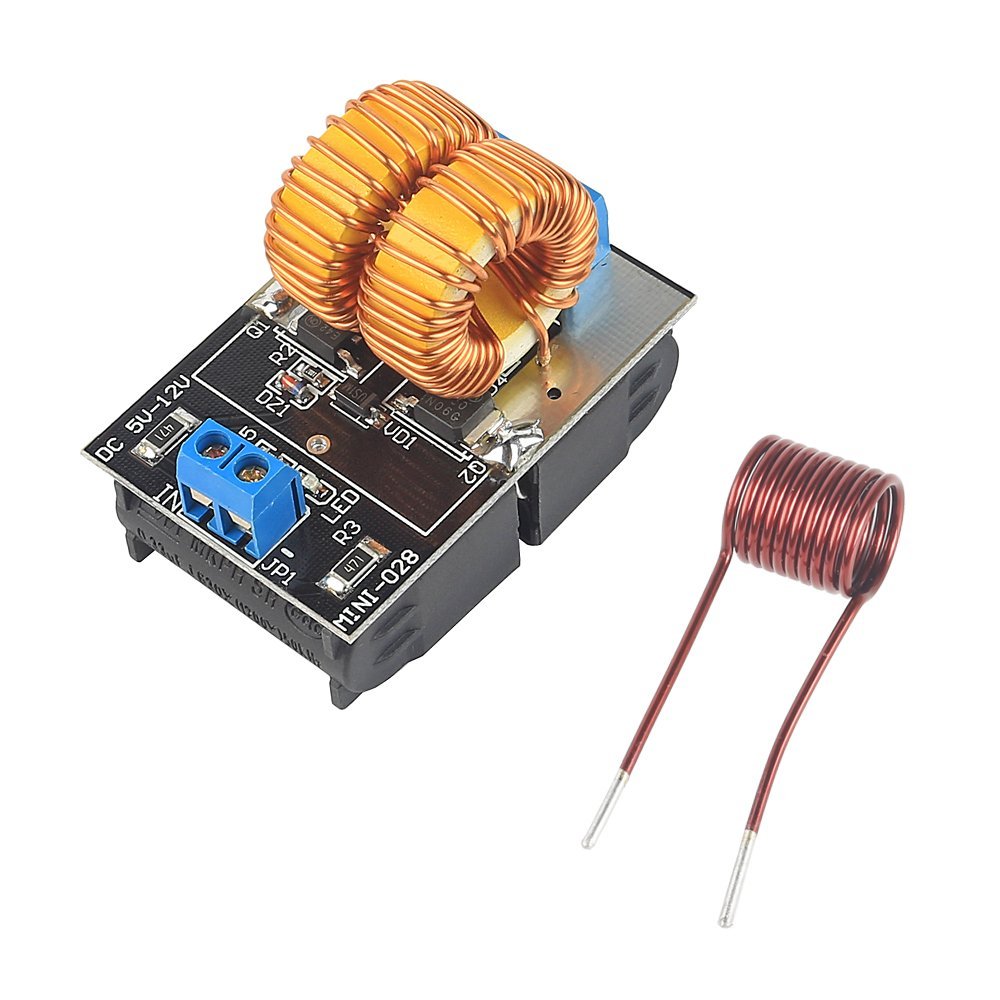

sainsmart 5V~12V Zero Voltage Switching ZVS Induction Heating Power Supply Module + Coil Power Supply Heating Power Supply Module

$9.09$12.99$18.06
Last update was on: Friday, December 27, 2019

Parameters:

1. This is no tap mini plate ZVS finished board, with no heating coil, ignition coil, and a cooling fan, etc.
2. The input voltage is DC 5-12V.
3. PCB size: 55 mm * 37 mm * 1.6 mm.

Package List:

1 x ZVS heating power supply module

Note: the product is ZVS heating power supply module, includes the heating coil

LeaningTech 5V~12V Zero Voltage Switching ZVS Induction Heating Power Supply Module + Coil Power Supply Heating Power Supply Module

$12.6$18$19.98
Last update was on: Friday, December 27, 2019

Specification: Input voltage: 5v-12v Module dimensions:5.542 cm(LWH) Product Weight: 119g Coil size: length:7.5cm width: 2.8cm Features: ZVS heating power supply module including heating coil Input voltage DC5V-12V(We are not guarantee the module will work when the voltage is over 12V or less than 5V) Maximum power 120W(when 12V eddy-current heating) Ensure all the components welding right,power line connect in right way,than to set up an electric circuit. The width of the heated object is as far as possible between the 1/3~1/2 of the inner diameter of the heating coil, the maximum not more than 2/3! Package Included: 1 pc ZVS heating power supply module 1 pc heating coil

ILS – 5V -12V ZVS Induction Heating Power Supply Module with Coil

$6.29$8.99$10.34
Last update was on: Friday, December 27, 2019

Features:
Input voltage: 5v-12vModule dimensions: 5.5 x 4 x 2 cm(L*W*H)Coil size: length:7.5cm width: 2.8cm
Package Included:
1 x induction heating power supply module1 x coil

ZVS Driver Module,5V-12V ZVS Low Voltage Induction Heating Power Supply Board+Heating Coil

Last update was on: Friday, December 27, 2019

Specification:
Input voltage: DC 5v-12 v
Maximum power 120w (12 v induction heating). 12 v, push the ignition coil primary 5 + 5 turn, about 30 w.
PCB size: 55 mmx37 mmx1.6 mm
Heating coil, the width of the heated objects as far as possible between the heating coil diameter of 1/3 ~ 1/2, most not more than two-thirds.

Package Included:
1 x ZVS driver board
1 x heating coil

1000W 20A ZVS Low Voltage Induction Heating Board Module Tesla with Coil 12V-48V Flyback Driver Heater DIY

Last update was on: Friday, December 27, 2019

Features:
24V input with no load current of 3A , 48V input with no load current of 6A
buyer need self-provided power and water cooling device
This circuit can do induction heating, or replace copper tube with high frequency transformer, it will be a powerful inverter

Note:
The kit contains a full set of driving circuit elements and brass
Buyers need to bring their own power and cooling unit.
The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.
So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.
The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit.
Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload

Package Includes:
1 x 20A 1000W Flyback driver inductive heater Zero Voltage Switching Tesla
1 x Coil

1800W ZVS Induction Heater Induction Heating Board Module Tesla Coil 12-48V Low Voltage DC Power Supply with a Maximum Current of 40A, Flyback Driver Heater

$49.2$70.29$83.65
Last update was on: Friday, December 27, 2019

Specification:
Input Voltage: 12V-48V (Recommendation: above 36V)
Power Requirments: Less than 12V >=10A, More than 15V >=15A
Maximum Power: 1800W
Maximum Current: 40A
Heater Inner Ring: 70mm / 2.8in
Size: 18 * 12 * 9 cm / 7.1 * 4.7 * 3.5in
Weight: Approx. 1052g

Package Included:
1 x PCB Board
1 x Copper Tube

Note:
1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.
2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.
3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.
4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.
5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.
6. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.
7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.

1800W ZVS Induction Heating Board Module Low Voltage High Frequency 12-48V Flyback Driver Heater with Tesla Coil and Cooling Fan

$40.92$58.45$75.4
Last update was on: Friday, December 27, 2019

Specification:
Product size:Approx.180x90x80mm (please allowed 1-3mm error)
Heater ring inner:70mm (Recommended crucible+quartz suit,maximum support of 58mm crucible)
Power supply:
New style :AC 100-220V Adapter
Old style: Main board Input voltage: 12V-48V recommend: 36V above
Power requirements: less than 12V≥10A , 15V above≥15A
NOTE:New style and Old style shipped by randomly!!!
It doesn’t affect the performance of product.!!!
Maximum power: 1800W
Maximum current: 40A
Package Content:
1 x PCB board
1 x 48V copper tube

1.The power of heating is very large, except that the plate and components are hot, and the heat of copper tube is very high. you can buy a small water pump and 2 meters of rubber hose(inner diameter is 4mm) for build a water cooling system
Please pay attention to using switch power supply, because output voltage is slowly rising, and if the voltage rise to 10V before connected induction heating circuit that will be lead to circuit can’t afford to vibrate caused by lacking voltage,so that the two MOS tube conduction and components will burned
comes with heating circle diameter-60 mm/design voltage-36V,if you use more than 40V Devices shall be used ≥70 mm diameter heating ring, DC 12V water pump use, please use separate power supply voltage regulator module to avoid fan and water pump are burn out
The minimum input is 12V, but it doesn’t mean all 12V power supply available,The module has specific requirements on voltage and current , 12V require current must than 10A ,output power will greatly reduced if the power is too low ,which will lead to two MOS conduction at the same time & burn MOS tube when lower than 12V

1800W ZVS Induction Heating Board Module Flyback Driver Heater with Tesla Coil and Fan

$45.49$64.99$80.59
Last update was on: Friday, December 27, 2019

Note
1. The power of heating is very large, except that the plate and components are hot, and the heat of copper tube is very high. The buyer can prepare water cooling system separately, can buy a small water pump and 2 meters of inner diameter of 4mm rubber hose.
2. You must pay attention to when using switch power supply, because the high-power switching power supply usually have soft start function, namely the output voltage is slowly rising, and if the voltage rise to 10V before connected induction heating circuit will be caused by lacking voltage lead to circuit can’t afford to vibrate, so that the two MOS tube conduction and burned components at the same time, so be sure to switch the power supply voltage stability and then access the induction heating circuit.
3. When heating the metal objects do not to heat too large metal, otherwise it may be overloaded with power, please add a 35A fuse or ammeter and air switch will be better. (package does NOT included)
4. Although this drive plate can withstand more than 40A current, but it is recommended that not exceed 48V 35A to prevent accidents and damage.
5. Package comes with heating circle diameter is 60 mm, design voltage is 36V, if you use more than 40 voltage power supply shall be used for inner diameter 70 mm above diameter heating ring, water pump use 12V dc power supply, please use separate power supply voltage regulator module to avoid burn out fan and water pump.

YosooFdit Induction Power Heating Supply Module 5V-12V ZVS Low Voltage Heating Tool with Coil Power Supply Module

Last update was on: Friday, December 27, 2019

Description:
Note: the product is ZVS heating Power Source module, include the heating coil.

1, this no tap mini plate ZVS finished board, with no ignition coil and a cooling fan, etc.
2, the input voltage DC 5 v to 12 v.
3, maximum power 120 w (12 v induction heating). 12 v, push the ignition coil primary 5 + 5 turn, about 30 w.
4, PCB size: 55 mm * 37 mm * 1.6 mm.
5, heating coil, the width of the heated objects as far as possible between the heating coil diameter of 1/3 ~ 1/2, most don’t more than two-thirds.
6, induction heating, power work five minutes to cool. For induction heating current is larger, heating coil is relatively large. When heated, part of the heat generated by the heated object will be passed on to the heating coil, over time, the temperature of the heating coil will be high. If the heating coil in the words of the terminal, the terminal part of plastic melt!!!! Therefore, induction heating the best heating coil directly welded to the PCB.

package include:
1 x ZVS heating Power Source module
1 x heating coil

JIUYAODIANZI Arduino Project 5V -12V ZVS Induction Heating Power Supply Module with Coil

Last update was on: Friday, December 27, 2019

Product Name: Induction heating power module

Weight: 200 grams

Input voltage: 5v-12v

Module size: 5.5 x 4 x 2 cm (length * width * height)

Coil size: length: 7.5 cm, width: 2.8 cm

Size: 8 * 5 * 3 cm / 3.14 * 1.96 * 1.18 inches

Package Included:

1 x induction heating power supply module

1 x coil

Feedback and contact information:

1. If you are not satisfied with our products or services, please contact us. We are committed to providing you with a satisfactory solution. We are happy to reply by email within 24 hours.

2, Reminder: Please contact us before receiving negative feedback.

Conclusion

By our suggestions above, we hope that you can found induction heating power supply module with coil for you.Please don’t forget to share your experience by comment in this post. Thank you!
