The 9 Best Computer Liquid Cooling System Radiator

Available in 480mm, 420mm and 360mm sizes, Thermaltake Pacific CL radiators are a high-performance copper radiator series with high-density copper fin design and brass tank. Built for 120mm/140mm high-static pressure fans, these radiators are manufactured from premium-quality materials to provide exceptional performance and unrivalled reliability. Constructed with stainless steel side panels guarantees the durability as well as reducing the weight of the radiator. Integrated G1/4″ threads make it easy to install, while rigid connections ensure leak-resistant measures are in place. With an ideal mounting, fitting and flow set-up, the Pacific CL Series meets your cooling needs in every way. 2 year warranty.

Product Name: Water Cooling Radiator

Product Specifications:
– Fitting Thread: G1/4 Inch
– Fin density: 18 lines per inch
– Color: Black
– Type: Water Cooling; Material: Aluminum
– Mouth: 9.5 (D) mm; Model Number: 240mm
– Longer Screw Size: 31 x 3 mm / 1.2” x 0.12”(L*D)
– Size: 275 x 120 x 58mm / 10.8” x 4.7” x 2.28”(L*W*H)
– Tube Quantity: 12; Fit ID Tube Inner Diameter: 8 -12mm / 0.3” – 0.5”
– Fit ID Tube Outer Diameter: 9.5 mm / 0.37”; Shorter Screw Size: 7 x 3 mm / 0.3” x 0.12”(L*D)
Product Features:
– Pure aluminum fins
– Parts brazing seal as a whole
– Surface treatment: Dark paint
– Joint: disposable stainless steel-band
– The sealing process: vacuum aluminum brazing
– Item Type: Computer Radiator Water Cooling Cooler; Material: Metal
– Can be installed 120mm fan, mounting hole size: 109.5（D）×109.5（W）mm

✔Optimized for high performance at low cost,No weak welds nor leakage.
✔Suitable for computer CPU cooling, industrial frequency conversion driver, laser head cooling, air conditioning evaporator and industrial control cabinet cooling.

Package Included:
1 x Aluminum Heat Exchanger High speed fan
NOTE: Screw holes below is channel pipe, so make sure not to use long screw, will top leaking.

The Floe Riing RGB 360 TT Premium Edition is the world’s first 16.8 million colors liquid CPU cooler with three 120mm Riing Plus RGB fans and a LED waterblock. This cooler series features its extraordinary performance and superior quality. The large surface radiator plus high-performance waterblock and pump guarantees ultimate CPU cooling. Besides, the waterblock and the fans are manufactured with multiple addressable LEDs that can be controlled by Riing Plus RGB Software. Functions within the software also allow users to monitor fan performance and track CPU temperature. Enjoy better cooling performance and greater CPU protection with one simple upgrade!

Compatibility:
Intel LGA 2066/2011-3/2011/1366/1156/1155/1151/1150
AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
Water Block: Material:Copper
Pump:
Rated Voltage:12 V/ 5V
Rated Current:0.325 A / 0.4A
Motor Speed:3600 R.P.M

Fan
Dimension:120 x 120 x 25 mm
Speed:500~1400RPM
Noise Level:19.8 ~ 24.7 dB-A
Rated Voltage:12 V
Max. Air Flow:14.2~42.34 CFM
Max. Pressure:0.17~1.54 mm-H2O
Connector:5 pin

Tube
Length:326 mm
Material:Rubber
Weight 1610g

Radiator: Dimension:393 x 120 x 27 mm

Compatibility:
Intel LGA 2066/2011-3/2011/1366/1156/1155/1151/1150
AMD TR4/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
*AIO Cooler bracket adapter comes in the AMD Threadripper CPU box. For Android – Requires Android 6.0.0 or later with screen resolution 1920 x 1080

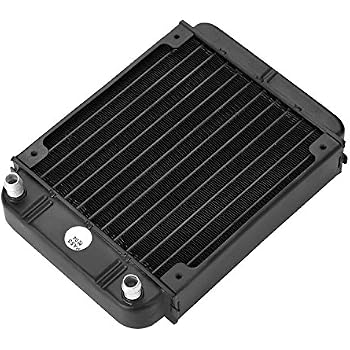

DIYhz Water Cooling Computer Radiator

Product Specifications:
– Color: Black
– Tube Quantity: 12
– Weight: 323g
– Material: Aluminum
– Mouth: 9.5 (D) mm
– Fitting Thread: G1/4 Inch
– Fin Density: 18 lines per inch
– Model Number: 120mm x 120mm x 2
– Fit ID Tube Inner Diameter: 8 -12mm / 0.3” – 0.5”
– Fit ID Tube Outer Diameter: 9.5 mm / 0.37”
– Outer Size: 275 x 120 x 30mm / 10.83” x 4.72” x 1.18”(L*W*H)
– Longer Screw Size: 31 x 3 mm / 1.2” x 0.12”(L*D)
– Shorter Screw Size: 7 x 3 mm / 0.3” x 0.12”(L*D)

Specifications:
– Material: Metal
– Pure aluminum fins
– Parts brazing seal as a whole
– Joint: disposable stainless steel-band
– The sealing process: vacuum aluminum brazing
– Item Type: Computer Radiator Water Cooling Cooler
– Can be installed 120mm x 2 fan, mounting hole size: 109.5（D）×109.5（W）mm
★ Optimized for high performance at low cost, No weak welds nor leakage.
★ Suitable for computer CPU cooling, industrial frequency conversion driver, laser head cooling, air conditioning evaporator and industrial control cabinet cooling.

Package Included:
1 x Water Cooling Radiator (This product does not have a fan)
1 x 1m Silicone tube
8 x Short screw
8 x Long screw

Thermaltake Pacific C360 DDC soft tube Water cooling kit is designed for users who likes an efficient and high-quality Combo kit that is ready to sync with 5V RGB Capable motherboards from Asus, Gigabyte, MSI and as rock. The kit includes three pure 12 a RGB sync radiator fans, a Pacific W4 a RGB CPU water block, Pacific pr15-ddc pump/reservoir Combo, Pacific C360 radiator, a bottle of T1000 transparent coolant pure Clear, six Pacific 1/2” Id x 3/4” Od compressions, two meters of V-Tumbler 4T 1/2’‘(12. 7mm) ID x 3/4’‘(19mm) OD transparent tube, an a RGB LED controller, and other accessories. dimension: 520 (L) x 200 (W) x 232 (h)compatibility: intel LGA 2066/2011/1366/1156/1155/1151/1150/775amd AM4/FM2/FM1/AM3+/AM3/AM2+/am2(cpu socket)components Dimension: pump & reservoir: 86. 54 (L) x 62 (W) x 140. 1 (H) mm copper radiator: 29. 5 (H) x 119 (W) x 399 (l) mm tube Dimension: od: 16mm, ID: 12mmfan spec: pwm 5001500 RPM, ( a RGB Controller or 5V MB a RGB sync )coolant: T1000 coolant pure clear kit contents: cpu water block – Pacific W4 a RGB CPU water block x1pump/reservoir- Pacific pr15-ddc pump/reservoir Combo x1copper radiator- Pacific C360 radiator 29. 5 (H) x 119 (W) x 399 (l) mm x1argb fan- pure 12 a RGB sync radiator fan TT Premium Edition x3- a RGB LED controller fittings – Pacific 1/2” Id x 3/4” Od compression – Black x6- Pacific G1/4 90 degree adapter – Black x2coolant- Thermaltake T1000 coolant pure Clear x1 tube- V-Tumbler 4T 1/2’‘(12. 7mm) ID x 3/4’‘(19mm) transparent tube x2 meters accessory- Intel and AMD universal Back Plated & mounting kit- 24pin ATX bridge tool x1- Thermaltake thermal grease x1

The Pacific M240 D5 Hard Tube Water Cooling Kit is an efficient, yet quality liquid cooling solution for all water-cooled gaming systems. Inside you will find a W3 CPU water block, PR15-D5 pump/reservoir combo, R240 radiator, C1000 Pure Clear coolant, 3 Ring 12 RGB fans, 8 C-Pro compression fittings, 2 adapter fittings, 4 PETG hard tubes and other accessories. 2 year warranty.

 P/N: CL-W216-CU00SW-A

Dimension: 518(L) x 198 (W) x 223 (H)

Compatibility: Intel LGA 2066/2011/1366/1156/1155/1151/1150/775

AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2(CPU Socket)

Components Dimension

Pump & Reservoir:228.1H) x 87.4(W) x 94.2(L) mm

Radiator : 39.9 (H) x 120.7 (W) x 273 (L)

Tube Dimension: OD : 16mm , ID : 12mm , L : 500mm

Fan Spec: 1500 RPM (1000RPM with LNC)

Coolant: Pure Clear Coolant

Kit Contents

CPU Water Block

– Pacific W3 CPU Water Block x1

Pump/Reservoir

– Pacific PR15-D5 Pump/Reservoir Combo x1

Radiator

– Pacific R240 Radiator 39.9 (H) x 120.7 (W) x 273 (L) mm x1

Fittings

– Pacific C-Pro G1/4 PETG 16mm OD Compression – Chrome x6

– Pacific G1/4 90 Degree Adapter – Chrome x2

Fan

– Riing 12 LED RGB 3 Pack x1

Coolant

– Thermaltake C1000 Pure Clear Coolant x1

Tube

– V-Tubler PETG Tube 16mm OD 500mm 4Pack x1

Accessory

– Silicone Insert 900mm Tt Premium Edition

– Intel and AMD Universal Backplated & Mounting Kit

– 24pin ATX Bridge Tool x1

– Thermaltake Thermal Grease x1

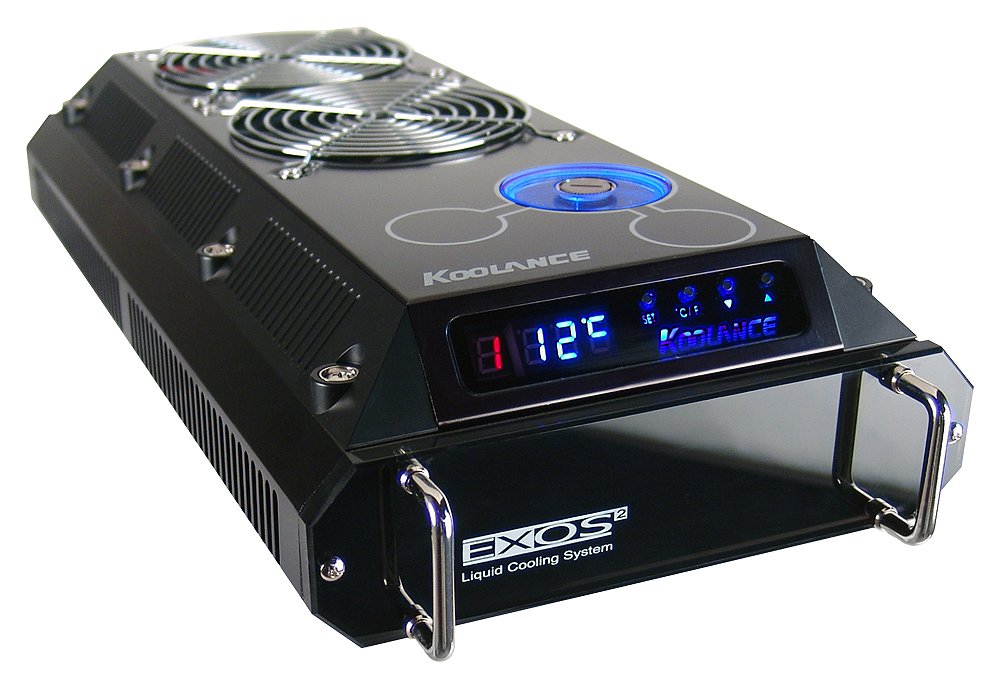

EX2-755 is an ambient liquid cooling system designed with features for computer cooling. This model contains a dual x 120mm fan aluminum radiator, providing roughly 590W of cooling with a 25°C ambient delta. Just add tubing, fittings, coolant, and connect to your cold plate(s).

• Cooling capacity: 590W (2013BTU/hr) with 25°C liquid-ambient delta @ 4LPM
• Radiator fan speed: automatic based on temperature, or 10 manual levels
• Pump: 10 manual speed levels, up to 4LPM (1GPM)
• Adjust audio alarm based on 3 included temperature sensors
• Relay trigger can be configured as NO or NC and adjusted based on temperature
• Power input: 12VDC (via computer Molex plug), or 110/220VAC with separate adapter
• Reservoir capacity: 157ml (5.3 fl oz)
• G 1/4 BSPP threads on back for fittings

Additional Specifications

• Flow Rate: 4LPM (1GPM)
• Radiator: Aluminum, 2 x 120mm fans
• Display Type: LED
• Temperature Sensors: 10K Thermistors
• Power Source: 12 VDC (110/220 VAC with Separate Adapter)
• Noise (dBA): 33-45
• Max Temperature: 60°C (140°F)
• Max Pressure @ 25°C: 2kgf/cm2 (28.5psi)
• Cooling Capacity: 590W (2013BTU/hr) @ 25°C liquid-ambient (25°C dT)
• Max Power Consumption: 20W
• Fitting Thread: G 1/4 BSPP

The Hydro Series H60 is an all in one liquid CPU cooler with a 120mm radiator built for low noise liquid CPU cooling and bold styling with a white LED lit pump head. Compatible with all current AM4, LGA 1151 and LGA 2066 socket CPUs and equipped with a CORSAIR 120mm SP Series PWM fan, users can adjust the fan speed between 600 RPM to 1,700 RPM for precise control over noise and airflow. A high density 120mm slim radiator provides greater surface area for superb heat dissipation, while a thermally optimized copper cold plate and low noise pump ensure heat is quietly and efficiently channeled away from your CPU. With tool free easy installation and CORSAIR engineered cooling, the H60 is everything you need to keep your CPU running fast, cool and quiet.

Conclusion

By our suggestions above, we hope that you can found computer liquid cooling system radiator for you.Please don’t forget to share your experience by comment in this post. Thank you!
